Star Analiser SA-100

Posted on November 14, 2020November 14, 2020

After some time thinking about it, finally I started with my first baby steps on spectroscopy. The most easy way is using a filter Star Analiser SA-100.

I added one of this to the new filter wheel on the CC8. This system is a 2000mm f12 with a QHY5III174 camera and the grating at 90mm.

With this hardware I could obtain a dispersion (resolution) of 6 Angstroms/pixel and a full coverage of the sensor.

Of course, the first image was Vega. Really bright star on the sky (++easy). Vega’s spectral class is A0V, making it a blue-tinged white main sequence star that is fusing hydrogen to helium in its core.

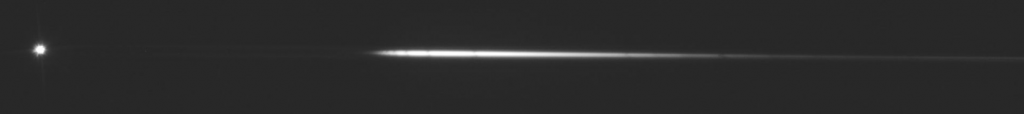

Vega capture with SA-100
Vega capture

It’s really easy to capture a nice spectrum and really easy to process it also. After to process, calibrated and applied the instrument correction this was the nice result (nice to me, because I am totally rockie ;D )

Vega spectroscopy

Next step, last night some captures of Uranus and Neptune to find the clear Methane presence in their atmospheres.

In that particular case we are talking about to integrate several pictures to increase the noise ratio and see something to process. All these captures are taken on remote operation using the RC10 in parallel as guide scope 😛 …..

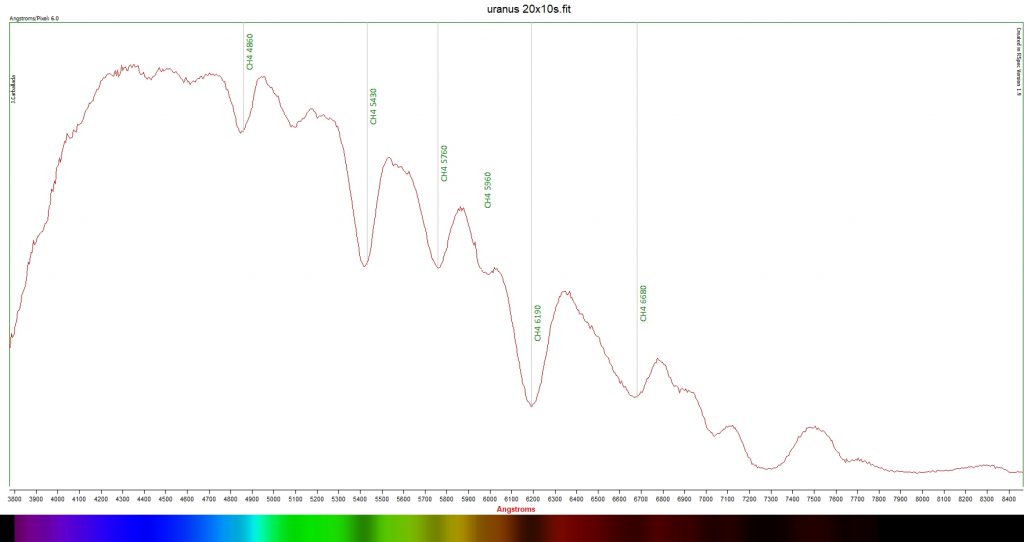

Uranus spectroscopy

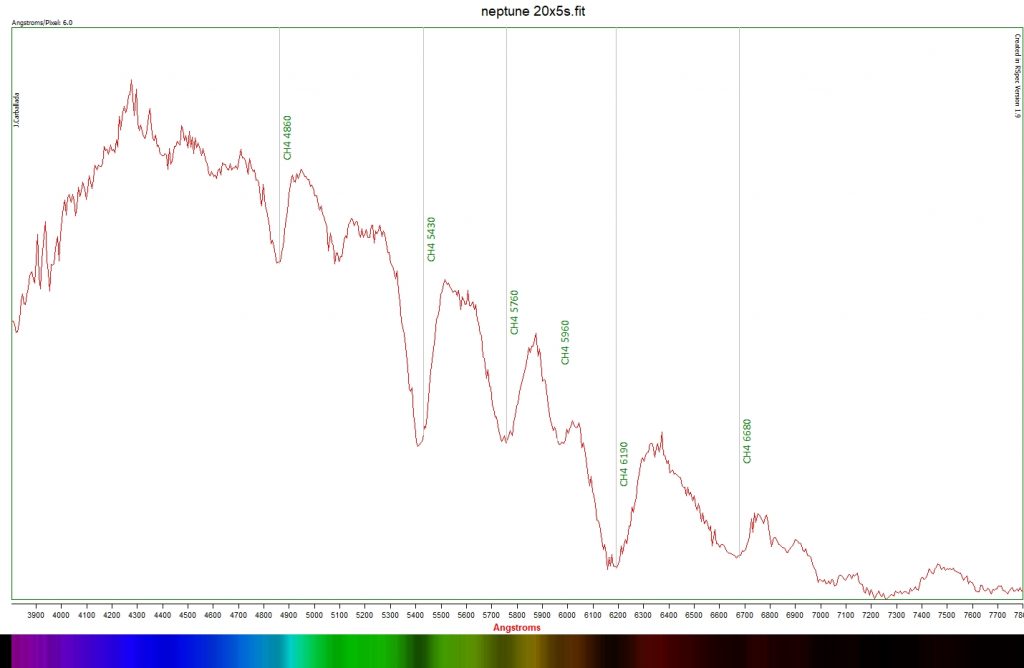

Neptune  spectroscopy

Another exercise was to resolve the famous double system Albireo with one red star and another blue, clearly different comparing their spectres.

Albireo capture for spectroscopy

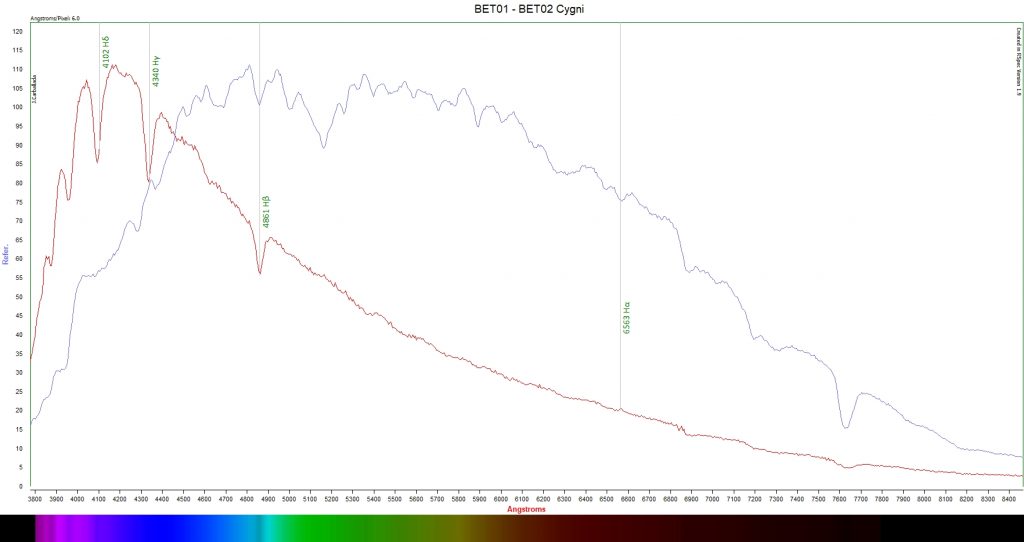

Albireo bet01 bet02 cygni comparative  spectroscopy

It’s a promising start to me!!! 😀

6 thoughts on “Star Analiser SA-100”

  1. Ricard says:
    November 15, 2020 at 8:01 pm

    Pretty good Jose. I’m happy for your progress and, right now, you have a new follower, of course. Delighted to greet you.

    Reply
    1. Jose says:
      November 15, 2020 at 10:07 pm

      Thank you Ricard!!! I will share my follow up updates soon!!

      Reply
  2. Carles Zerbst says:
    November 15, 2020 at 8:13 pm

    Hola: Pues muy interesante esta nueva actividad… me está entrando el gusanillo de intentar algo en este campo, el SA-100 es relativamente asequible a mi modesta economía (miraré si hay algo de ocasión).
    Iré siguiente el tema aquí y en Astronomo.org. Saludos.

    Reply
    1. Jose says:
      November 15, 2020 at 10:19 pm

      Muchas gracias Carles por dejar el comentario!! acabo de ver tu respuesta en astronomo.org…. allí hay mejores especialistas que yo 😀 si quieres date un paseo tambien por los grupos
      https://groups.io/g/Interferometry
      https://groups.io/g/RSpec-Astronomy
      y la página
      http://www.astrosurf.com/buil/index.html

      son muy activos y verdaderas fieras del tema…

      Reply
  3. Santiago Rodríguez Hernández says:
    February 17, 2021 at 11:24 pm

    Enhorabuena José, por tu trabajo en general, te sigo en foro y tus imágenes de CP… si me permites quería hacerte una pregunta (igual te parece “tonta”, pero no sé cómo hacer…)sobre cómo usas la star analyser para con esa focal, tener espectros de planetas que presentan superficie amplia en lugar de fuentes puntuales de luz como las estrellas…

    Gracias

    Reply
    1. Jose says:
      February 25, 2021 at 8:44 am

      Hola Santiago, gracias por tu comentario y la respuesta es realmente sencilla.
      Incluso a esta focal las tomas de Urano o Neptuno son de unos puntos no muy grandes, para ilustrarlo pongo un link al apilado de 20x10s de Urano

      https://i.imgur.com/NRmsivL.png

      saludos

      Reply
